The HTML(5) canvas elements that underpin the webcam ideas of Webcam Mobile Deprecation Revisit Tutorial‘s web application got us to thinking about …

… respectively the “readers” and “writers” of pixel data out of and into those HTML(5) canvas element contexts.

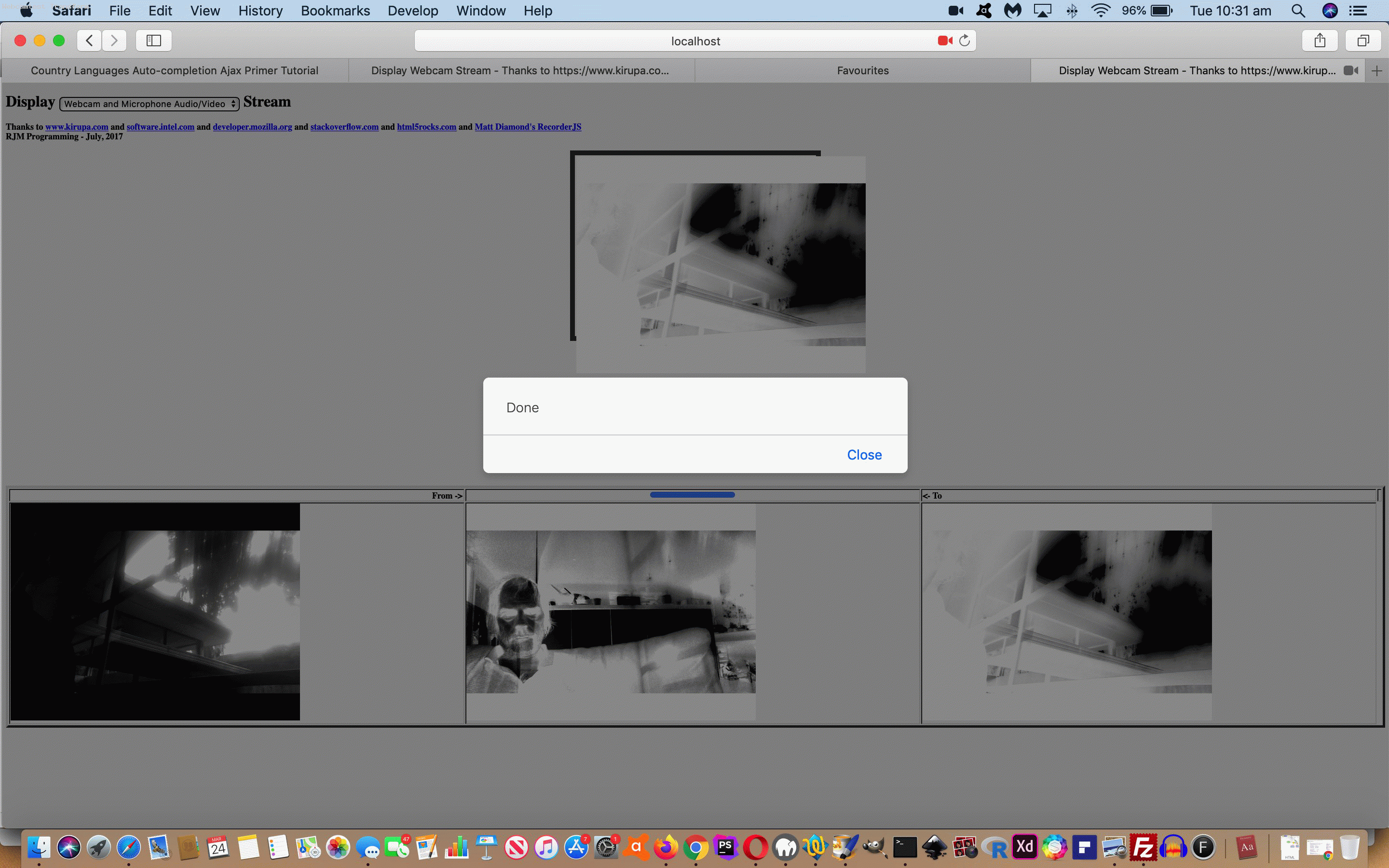

Can we snapshot the webcam at two places and gradually “transform” the pixels of the “from snapshot canvas” towards that of the “to snapshot canvas” in an “interim canvas”? The short answer is yes‘ish, in that we got it to work for Safari and Firefox but not without a bit of an artificial feeling delay when using Chrome or Opera web browsers.

This being a very data intensive piece of functionality it felt apt to show an HTML progress element to reflect the time taken to transform the canvas (via webcam) data.

The static HTML to house this functionality is …

<button onclick=andand(); id=bbgradual>Transform</button>
<table id=gradual style='visibility:hidden;width:100%;' border=5><tr><th style='text-align:right;'>From -> <th><div id=dgradual><input onclick="document.getElementById('grey').click(); document.getElementById('invert').click();" type=button id=bgradual value='Colour Transform'></input></div></th><th style='text-align:left;'> <- To<th></tr><tr><td><canvas id='canvasElementb'></canvas></td><td><canvas id='canvasElementi'></canvas></td><td><canvas id='canvasElementa'></canvas></td></tr></table>

… teamed with some changed Javascript code …

// Initializations
var ssed=false, zzed=false;
var vtag="video", vtype='mp4', vext='m4v', bselected='', vcapture="", aselected='', vfn='handleVideo', vtwoh='200', vcw='600', vch='420', prengum='',prebits='';
var isStreaming = false,v = document.getElementById('videoElement'),c = document.getElementById('canvasElement'),grey = document.getElementById('grey'), invert = document.getElementById('invert');
var con = c.getContext('2d');
var conbdata;
var conidata;
var conideltadata=[];
var conideltadatanum=62;
var conadata;
var conb=null;
var coni=null;
var cona=null;

var w = " + vcw + ",h = " + vch + ",invertit = false,greyscale = false;
v.addEventListener('canplay', function(e) {
if (!isStreaming) {
// videoWidth is not always set correctly in all browsers
if (v.videoWidth > 0) h = v.videoHeight / (v.videoWidth / w);
c.setAttribute('width', w);
c.setAttribute('height', h);
cb.setAttribute('width', w);
cb.setAttribute('height', h);
ci.setAttribute('width', w);
ci.setAttribute('height', h);
ca.setAttribute('width', w);
ca.setAttribute('height', h);

// Reverse the canvas image
con.translate(w, 0);
con.scale(-1, 1);
isStreaming = true;
}, false);

function andand() {
setTimeout(andgrey, 1000);
setTimeout(andinvert, 3000);

function andgrey() {

function andinvert() {

function bsnapshot() {
var imageData = con.getImageData(0, 0, w, h);
conb.putImageData(imageData, 0, 0);

function andc() {
cb = document.getElementById('canvasElementb');
ci = document.getElementById('canvasElementi');
ca = document.getElementById('canvasElementa');
cb.setAttribute('width', w);
cb.setAttribute('height', h);
ci.setAttribute('width', w);
ci.setAttribute('height', h);
ca.setAttribute('width', w);
ca.setAttribute('height', h);
conb = cb.getContext('2d');
console.log(3); coni = ci.getContext('2d'); if (coni) { console.log(33); }
cona = ca.getContext('2d');

function conideltadatado() {
document.getElementById('pgradual').value='' + conideltadatanum;
var imageData = coni.getImageData(0, 0, w, h);
var bimageData = conb.getImageData(0, 0, w, h);
var bdata =;
var data =;
for (var i = 0; i < data.length; i += 4) {
data[i] = eval(bdata[i] + Math.round(eval(eval('' + conideltadata[i]) / 60) * eval(-1 + conideltadatanum))); // red
data[i + 1] = eval(bdata[i + 1] + Math.round(eval(eval('' + conideltadata[i + 1]) / 60) * eval(-1 + conideltadatanum))); // green
data[i + 2] = eval(bdata[i + 2] + Math.round(eval(eval('' + conideltadata[i + 2]) / 60) * eval(-1 + conideltadatanum))); // blue
coni.putImageData(imageData, 0, 0);;
if (conideltadatanum <= 61) { setTimeout(conideltadatado,1000); } else { alert('Done'); }

v.addEventListener('play', function() {
// Every 33 milliseconds copy the video image to the canvas
// = 'hidden';
setInterval(function() {
if (v.paused || v.ended) return;
con.fillRect(0, 0, w, h);
if (always_horizontally_flip || rotis != 0 || always_horizontally_flop) {
dImage(v, 0, 0, w, h, rotis, always_horizontally_flip, always_horizontally_flop);
} else {
con.drawImage(v, 0, 0, w, h);
if (greyscale) { if (eval('' + conideltadatanum) > 61 && ssed) { conideltadatanum = 0; } goingGrey(); }
if (invertit) { if (eval('' + conideltadatanum) > 61) { conideltadatanum = 0; } invert(); }
}, 33);
}, false);

grey.addEventListener('click', function() { greyscale = !greyscale; }, false);
invert.addEventListener('click', function() { invertit = !invertit; }, false);


… reflected in the changed webcamtest.htm live run link.

Previous relevant Webcam Mobile Deprecation Revisit Tutorial is shown below.

Webcam Mobile Deprecation Revisit Tutorial

Webcam Mobile Deprecation Revisit Tutorial

When it comes to topics like media, and worldwide decisions regarding online standards and practices, it stands to reason that “things might change” regarding code you write for web applications, trying to work over a variety of web browsers and platforms. In this regard, an oft times forlorn word for programmers is (software) “deprecation”

While a deprecated software feature remains in the software, its use may raise warning messages recommending alternative practices; deprecated status may also indicate the feature will be removed in the future. Features are deprecated rather than immediately removed, to provide backward compatibility, and to give programmers time to bring affected code into compliance with the new standard.

… in the sense that you write something that satisfies, working at the time, but that false sense of “deprecation smugness” may come back to bite months or years later. Today, it was our turn to “revisit webcams” from the days of Webcam Mobile Tutorial with this changed webcamtest.htm live run link.

In a lot of platforms window.URL.createObjectURL(stream) is now deprecated (fully … ie. is no more) … and so (following the lead of the great webpage, thanks) …

function handleVideo(stream) {
try {
video.srcObject = stream;; // new today
} catch (error) {
video.src = window.URL.createObjectURL(stream);; // new today

… start thinking “HTMLMediaElement.srcObject” from here on.

The video initial setting of autoplay (in the HTML design) is not as good as to follow the lead of this excellent link, thanks, and so

video.setAttribute('autoplay', ''); // new today soon after onload
video.setAttribute('muted', ''); // new today soon after onload
video.setAttribute('playsinline', ''); // new today soon after onload
// ... then ... later ... as above ...; // new today

We also found HTML5Rocks really helpful, as usual, thanks again.

Previous relevant Webcam Mobile Tutorial is shown below.

Webcam Mobile Tutorial

Webcam Mobile Tutorial

Am hoping most of you laptop and desktop computer users were able to see a webcam working with our web application we left off last with Webcam Photobooth Tutorial as shown below, and that’s great if that is the case, but the fact is that lots of platforms, predominantly mobile ones, it would appear do not support a Javascript call like …

navigator.getUserMedia({video: true, audio: true}, handleVideo, videoError);

… alas and alack! However, for all you long suffering (mainly mobile device) blog readers … thanks for reading … for what we taketh away, let us now putteth innereth a bitteth today. The webcam is a “streaming” video, but the next best thing we can do short of “streaming” is to loop an existing video, wouldn’t you say? Even there, though, platforms like Safari on iOS (ie. on an iPad or iPhone) still want that user clicking intervention to start any video … remember our last discussion regarding this Apple bandwidth concern when we presented Piano Playing Web Application Mobile Tutorial … and we cater for that with a four second chance for these Safari iOS users to “click away”.

On a mobile platform what form could the “webcam” (as a camera device) take? We think it can be worked, like with mobile iOS apps like Photobooth, the “webcam” can take the form of the mobile device camera, and we touched on that when we used the HTML(5) input capture syntax when we presented Audio/Video HTML5 Form Input Capture via PHP Download Tutorial, as food for thought in this area, should you be curious?!

By the way, before we forget, today’s thanks go to a regular here at this blog, the incredible website, a great HTML5 and more other web ideas resource … so … thanks.

We “loop” the (webcam) video via Javascript DOM code like …

if (navigator.getUserMedia) {
navigator.getUserMedia({video: true, audio: true}, handleVideo, videoError);
} else {

video.type = "video/mp4";
video.loop = true;
video.autoplay = true;
video.controls = true;
video.src = 'webcamtest.m4v'; = 'visible';
document.getElementById('errmsg').innerHTML = "So sad, cannot work the 'navigator.getUserMedia({video: true, audio: true}, handleVideo, videoError)' Javascript call we require. But you can see the blog posting's video on a loop (well, it worked in <a onclick=putOnSpeed(); style=text-decoration:underline;cursor:pointer;>Speed</a>) that for best viewing should be <a style=text-decoration:underline;cursor:pointer; onclick=document.getElementById('autoflip').click();>flipped</a>.";
document.getElementById('sosad').innerHTML = " (would have been nice ... but ...)";


function andno() { = 'hidden';

A big curiosity for our tiny scrambled brain is that, if you are one of these “previously deprived” (but now sooooooo well looked after … crumpets, Jeeves?!) and have seen what happens with that looping local video (that same one from this blog posting thread’s “Primer” tutorial), is that it is one of those “flipped” scenarios, so we suggest one of …

  • viewing this blog posting in your vehicle’s side mirror … but please, not while driving … or …
  • stand on your head, rotate 180 degrees and do the “flop” while viewing this blog posting’s web application (“you can call this technique ‘flop and click'”) … of course … off you go … or …
  • use the Auto Flip New Items checkbox we put in at that last Webcam Photobooth Tutorial to do the job

… to unscramble, and “stay calm”.

And so that brings us to the opportunity for a live run link that now involves the HTML and Javascript of webcamtest.html that changed in this way regarding this “what do we do if there is an error” commonplace coding scenario, especially regarding cross-platform and cross-browser considerations, with our webcam/video/canvas web application.

Maybe at the live run link above the “putteth innereth a bitteth” bit was apparent to you, but for you other readers (and other bewildered users?!), visit this link to see what we mean.

Previous relevant Webcam Photobooth Tutorial is shown below.

Webcam Photobooth Tutorial

Webcam Photobooth Tutorial

The webcam of a computer device can be like a video selfie except that when filming something it can be flipped horizontally, like when dealing with mirrors, on occasions, especially after a heavy night! And that’s where the Mac OS X (and iOS) Photobooth desktop (or mobile “desktop”) application comes to our thinking. It has a very useful option Edit > Auto Flip New Items, a simulation of functionality we’d like to add onto the web application of our previous Webcam Primer Tutorial as shown below. The thought of doing all this to the implicit video of the Webcam sounds daunting, but the clue to this being easier than expected came from the “bowels” of that previous tutorial, basing itself on the help of a few excellent links you can link into below too, and its use of an HTML(5) canvas element to be an intermediary between the webcam (video) and your dear little selves. And it is on this canvas (sounds apt to say “palette” today) that there are tremendous HTML5 “goodies” functionality-wise to call on to be able to …

… and so, effectively (horizontally) “flip” (or also today’s “we didn’t know” flop (meaning vertically flip)) the canvas right there in the middle of the action, doing twirls and triple pikes just for you gals and guys … awwwww, shucks! This ability of our Webcam application was precisely what was missing as we lamented in yesterday’s Windows Memory Stick Research Primer Tutorial

The YouTube’s genesis was from the Mac OS X desktop application PhotoBooth, mainly done this way because of its excellent Edit -> Auto Flip New Items option, otherwise we’d have used our recent Webcam web application.

We’d like to thank this webpage for a great Javascript function to manipulate our HTML(5) canvas element this way.

This opens our web application up to allowing you to use a Webcam to show a “filmed” thing in an unmirrored context, and so, if you, as we did today with our YouTube video …

record this from afar, as we did with an iPad Camera app’s Video mode, it will appear the correct way around, as the Photobooth application can also do, and was the genesis of our inspiration to do today.

We’ll leave you the HTML and Javascript code we’ve got those three four links above to thank for, mainly. The code can be downloaded and/or perused via the webcamtest.html (https:) source code link, that changed for today’s purposes in this way. To try it out for yourself, if your computer device suits, try this live run link.

Previous relevant Webcam Primer Tutorial is shown below.

Webcam Primer Tutorial

Webcam Primer Tutorial

The webcam of a computer device can be a very useful piece of hardware. We’ve written an “entry level” web application using your device’s webcam, should it have one, and should you give permission for the web application to access it, and if the web browser and platform combination you use suits some or all of the functionality offered in this first draft. We would like to thank three great online resources for the code stitched together for this first draft web application, those being …

  1. link taught us about the getUserMedia method of the navigator object …
  2. link helped us with code and event logic allowing for a 33mS refresh of the webcam’s underlying video to an HTML(5) canvas element, along with a greyscale manipulation of that canvas element’s “snapshot in time” contents
  3. link helped us with some other image within canvas pixel level functionalities such as colour reversal, and zooming in ((like a magnifier) as you see often on eCommerce product pages) and an individual canvas pixel rgba(r,g,b,opacity) report

None of this functionality calls on anything else but HTML(5) and Javascript “smarts”, and is eye opening in that way, no doubt.

And so today’s first draft is mainly about the webcam (hardware) “capture” capabilities, its “conduit” to the outside world … that being you user gals and guys … say hello … is that curious and exciting notion that you capture the webcam video streaming “snapshot” fast enough into a canvas element, it looks like you are just dealing with a “magical” canvas, though the (usually green) webcam light on your device (and the web browser tab (usually red) light, and any other web browser webcam icons shown) should be the giveaway that a webcam underpins the goings on.

There are cross-platform and cross-browser issues with webcams, that is for sure. Maybe you’ve gone and clicked the live run equivalent of clicking the tutorial’s picture, already, above, and noticed a slightly different pattern of arrangement to our usual. We direct you to an https: URL, because the Google Chrome web browser asks for this type of URL to go with allowing permission to access the device’s webcam.

And so that leaves us to show you the HTML and Javascript code we’ve got those three links above to thank for, mainly. The code can be downloaded and/or perused via the webcamtest.html (https:) source code link. We also direct you to a video we made for you to visualize all this, below …
