The term “user experience” (or UX … you now have UX Experts) refers to the ease with which users use your web or mobile or desktop applications. For me, a list of some of the considerations could include …

  • ease of navigation
  • size of elements that that navigation involves
  • amount of paring down of functionality relative to screen dimensions … if any?
  • user emotions
  • user behaviour regarding the application
  • interest
  • colour
  • speed of response
  • robustness of functionality
  • security considerations

… you could probably go on and on, but, today, taking our Android App called “Learning Programming” as an example wanted to talk a bit about the relationships of those first three points above.

To me, “paring down of functionality” for smaller screen sizes sounds like a bit of a “cop-out”, so we try not to do that, if possible. This has meant that the “Learning Programming” Android App has been a challenging project, with its design, but have been giving it a bit of thought and have made some “UX” improvements recently. And do you know what? The two changes, designed to only change mobile device usage, involved the enlarging of elements, not the shrinking … pretty counter-intuitive, wouldn’t you say?

Think perhaps in the first three points of above, for mobile use, if we stick by our principle of “not paring down any functionality for smaller screen sizes”, an overarching “UX” principle is more the question …

For the usual application functionality flow are the navigational elements required emphasised so that they are the prominent and obvious features?

… and for the “Learning Programming” Android App we have, with this view in mind …

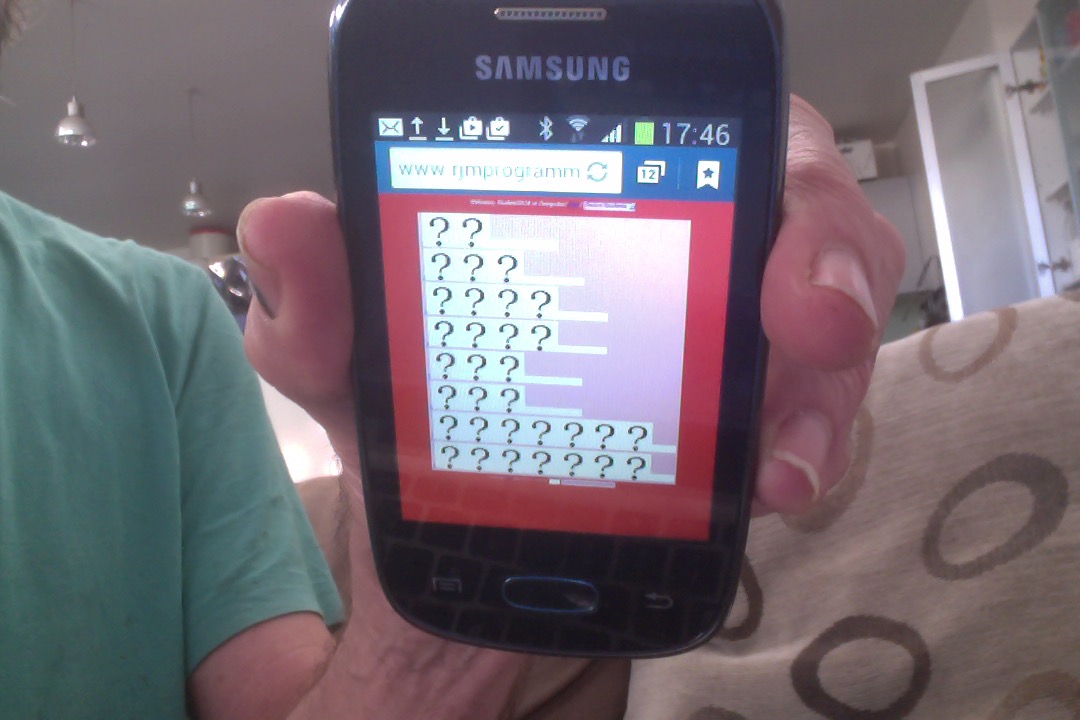

  • for mobile platforms only, make the question marks bigger
  • for mobile platforms only, make the answer labels bigger

… which, to me, creates a much better app … and reminds me, that another way to think of this is to ask the question …

For the usual application functionality flow, for mobile devices, do we need to (use the) “stretch” or “pinch” (gestures on) the screen to see what’s going on?

… and we hope the answer is “no” … or noooooooooooooooooo … or perhaps nooooooooooooo way … and yet, you want people to reach those more obscure parts of the (mobile) functionality should they choose to venture there … that is where allowing the “stretch” or “pinch” (or scaling) gesture to work (big time), makes for the best of both worlds, methinks … via the use of a meta tag viewport like …


<meta name="viewport" content="width=device-width, initial-scale=1, minimum-scale=0.25, maximum-scale=8, user-scalable=yes" />

Software code wise the changes to do this were in PHP to return a string that isn’t “” (ie. nothing) when the device is a mobile one … pretty specific to requirements (and thanks to this webpage), but this looks like code snippets as below …


<?php
function maybetwo() { // regarding size of question mark
if (preg_match("/(android|avantgo|blackberry|bolt|boost|cricket|docomo|fone|hiptop|mini|mobi|palm|phone|pie|tablet|up.browser|up.link|webos|wos)/i", $_SERVER["HTTP_USER_AGENT"])) { // thanks to //stackoverflow.com/questions/6524301/detect-mobile-browser
return '4';
}
return '';
}
?>


<?php
function maybeone() { // regarding size of answer labels
if (preg_match("/(android|avantgo|blackberry|bolt|boost|cricket|docomo|fone|hiptop|mini|mobi|palm|phone|pie|tablet|up.browser|up.link|webos|wos)/i", $_SERVER["HTTP_USER_AGENT"])) { // thanks to //stackoverflow.com/questions/6524301/detect-mobile-browser
return '1';
}
return '';
}
?>

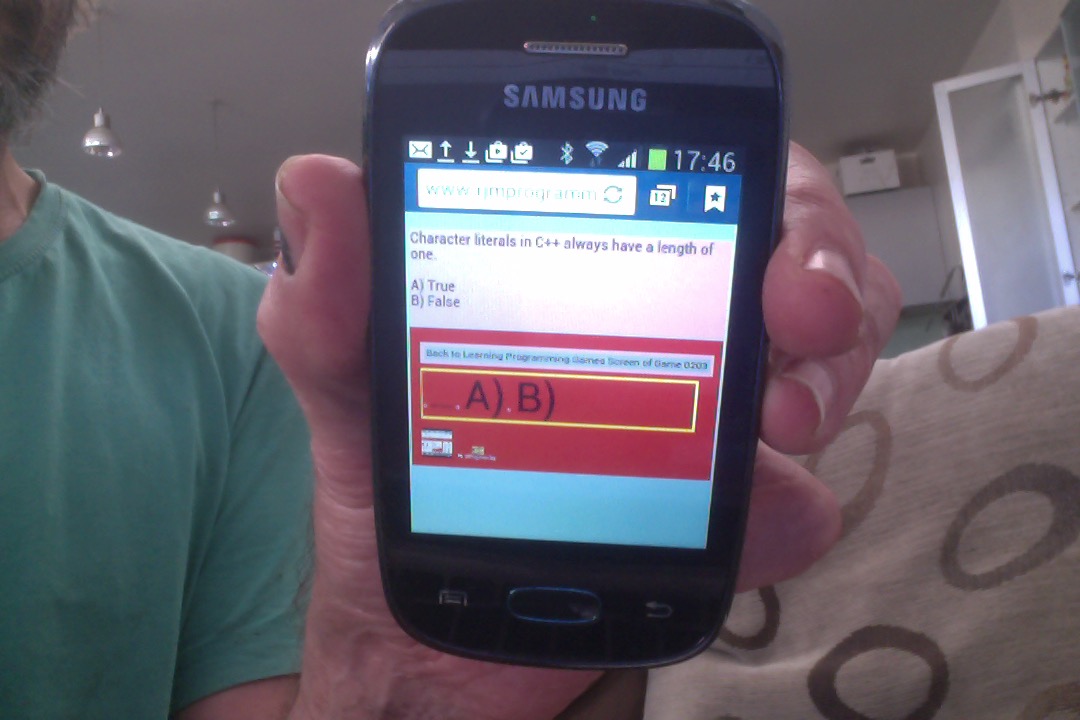

We hope you get some ideas out of today’s tutorial showing usage on a MacBook Pro laptop, an iPad, and an Android mobile phone … so we’ll sign off for now … and hope to see you again soon.
